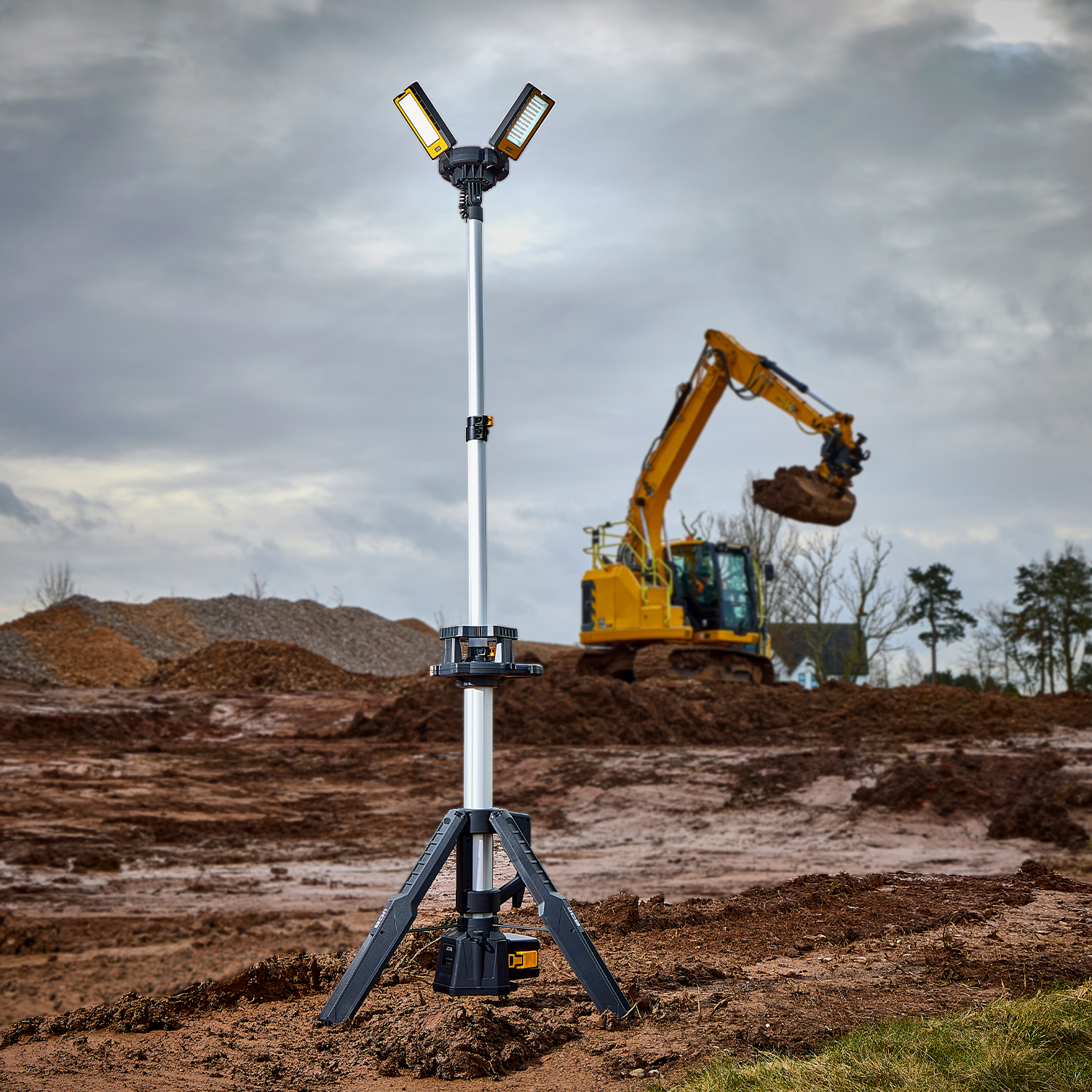

JCB TRI FOLD TOWER SITE LIGHT - 8400 Lumen, Hybrid Power

JCB TRI-FOLD 8400 LUMEN TOWER LIGHT | JCB-SL-TRI-FOLD KONNECT

Delivering 8400 lumens of adaptable power, this compact site light is built for any trade, any task. Powered Your Way – using your 18V tool batteries or the included 110V/240V mains cable.

Key Features

Ultra bright 8400 lumens bright with wide coverage for any jobsite
Adjustable & Flexible 3 heads with 360° rotation, tripod height up to 2.4 m
Hybrid Power : 18V battery or 5m mains cable (included)

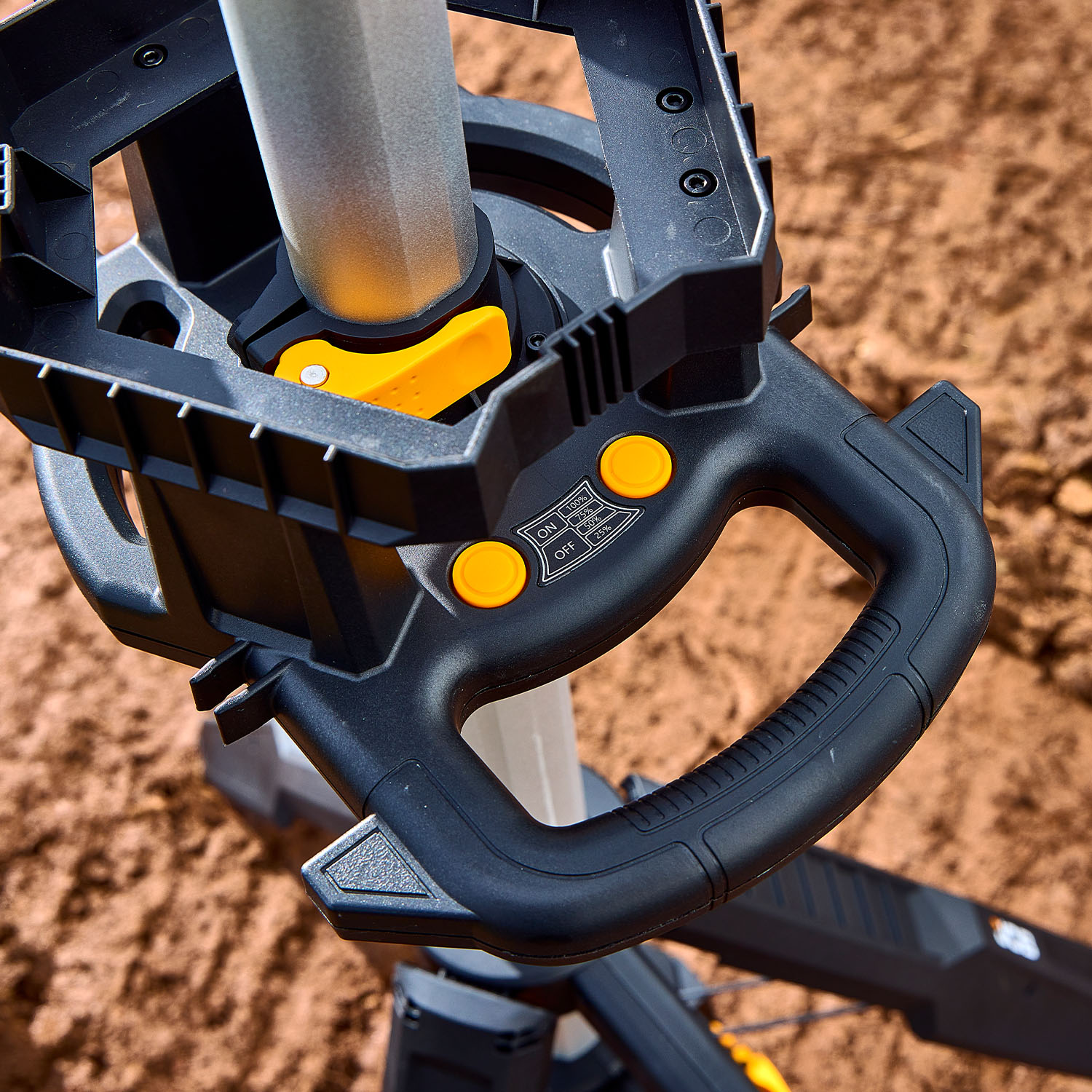

Smart Controls: settings memory switch + 4 brightness levels
Durable & Weatherproof: Tough body, IP54 rated & 1 m drop-tested

Power, durability, and flexibility — all in one site light designed to outperform expectations

Description

A compact and versatile 8400 lumen site light designed for construction and trades.

Versatile

8400 lumens
Rapid deployment, single trigger
Height adjustable up to 2400mm

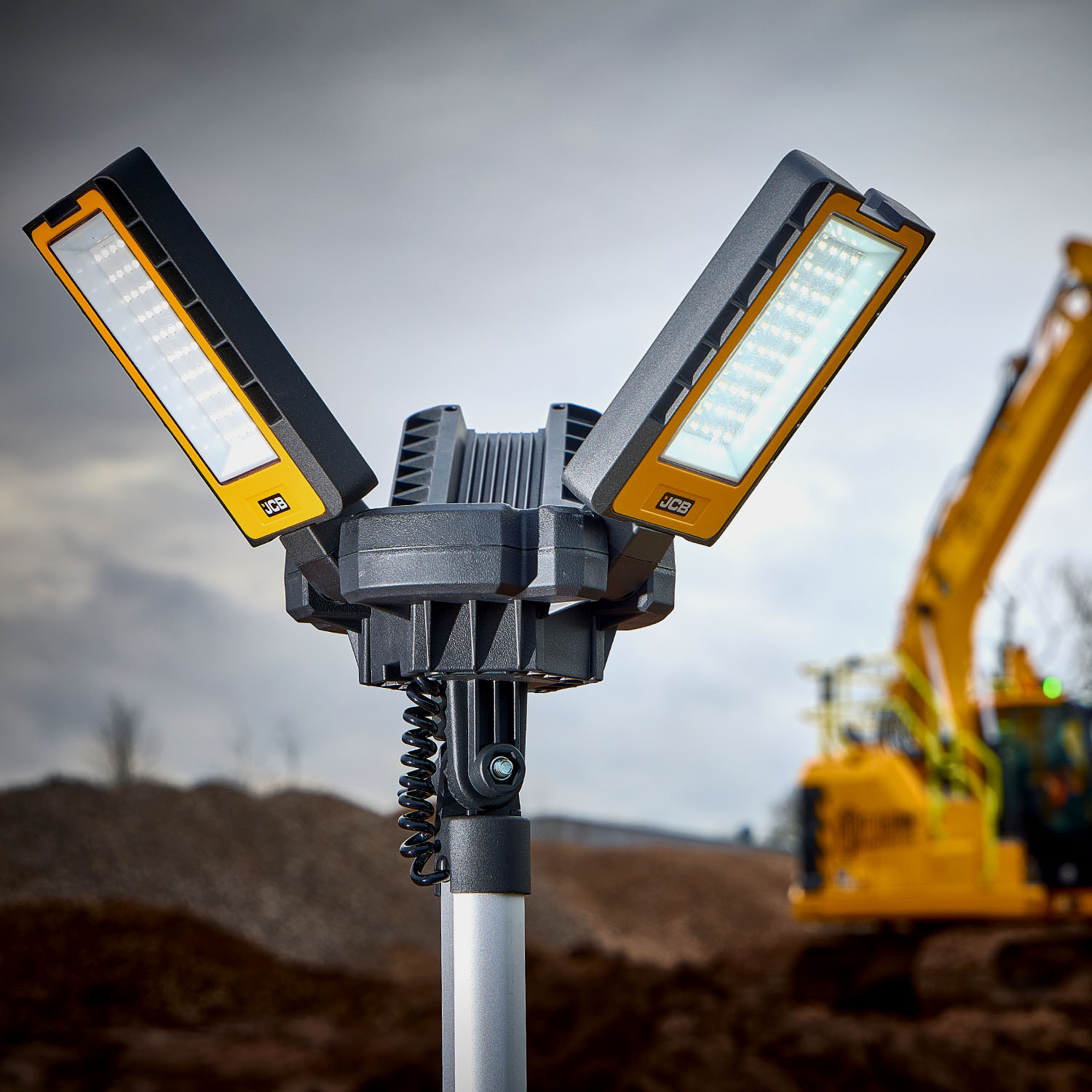

3 fully adjustable light heads with 360° adjustment
Intelligent memory switch – remembers last light setting

Reliable

IP54 water/dustproof
Runtime up to 8hrs based on 18V 5Ah battery
IK08 / 1M drop tested
Battery level status indicator
Strong nylon/aluminium construction

Powered Your Way

4 brightness output settings
- 25% – 2100 lumen
- 50% – 4200 lumen
- 75% – 6300 lumen
- 100% – 8400 lumen

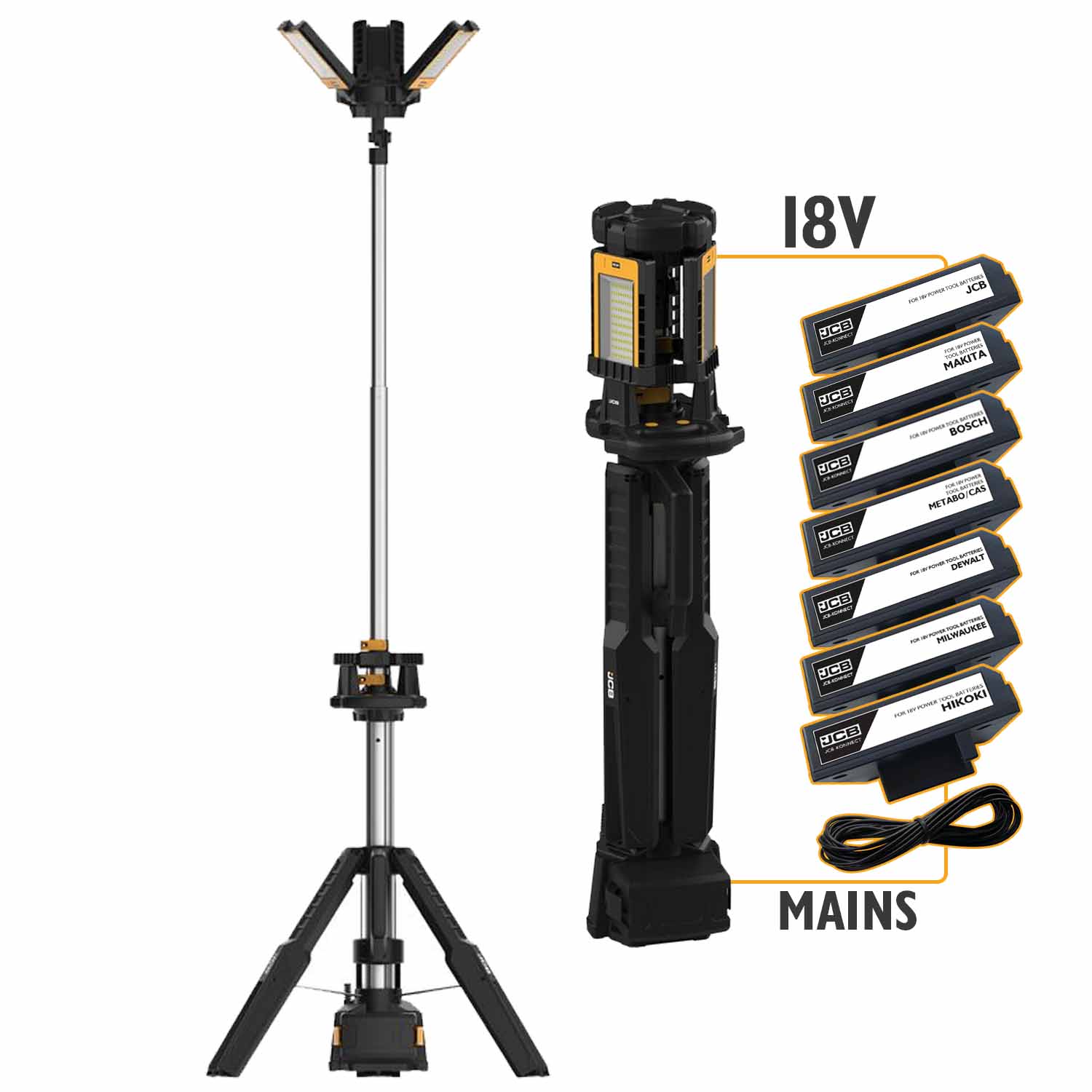

Using your 18V power tool battery
- Make a choice from the available battery adapters:
- DeWalt, Milwaukee, Makita, Hikoki, JCB, Bosch, Metabo/CAS
18V battery compartment with lockable cover
110/240V ac via 5 metre industrial cable fitted with 13amp BS plug supplied.
- 110V option is available by request

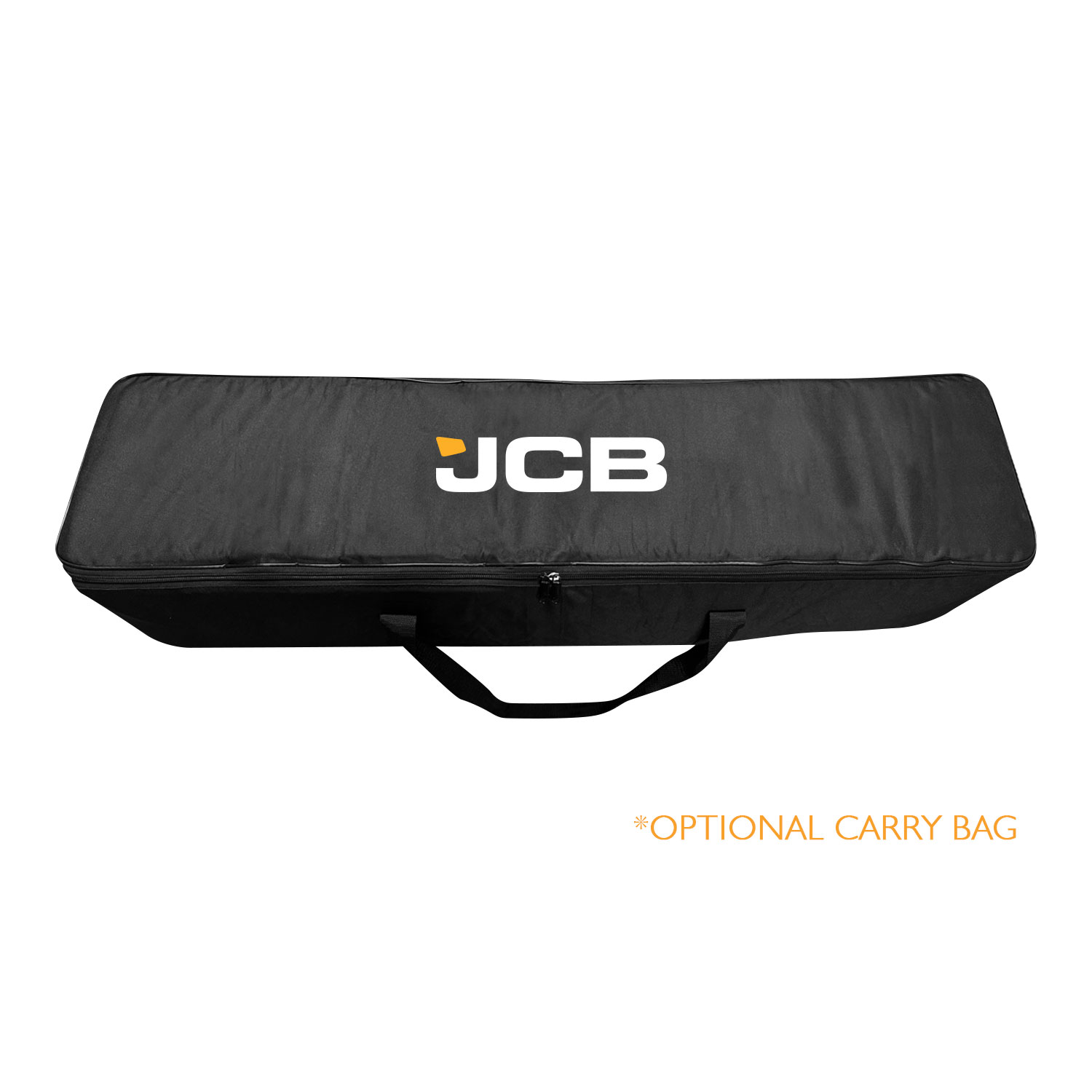

*Optional carry bag

OUTPUT	MAX 8200 LUMENS
BATTERY	18V POWER TOOL BATTERY (Adapters available for DeWalt, Milwaukee, Makita, Hikoki, JCB, Bosch, Metabo/CAS)
ALTERNATIVE POWER	110/240V ac via 5 metre industrial cable fitted with 13amp BS plug supplied. 110V option is available by request
MAXIMUM RUNTIME AT 25% BRIGHTNESS	6 HOURS USING FULLY CHARGED 18V POWER TOOL BATTERY
IP/IK RATING	IP54 WATER / DUSTPROOF IK08 DROP TESTED
WARRANTY	3 YEARS
DIMENSIONS (MM)	265 (D) x 210 (W) x 1090 (H)
WEIGHT	11.3KG
EAN NUMBER	0654139757023

Data Sheet	Instructions
TRI-FOLD TOWER KONNECT Data Sheet	TRI-FOLD TOWER KONNECT Instructions
